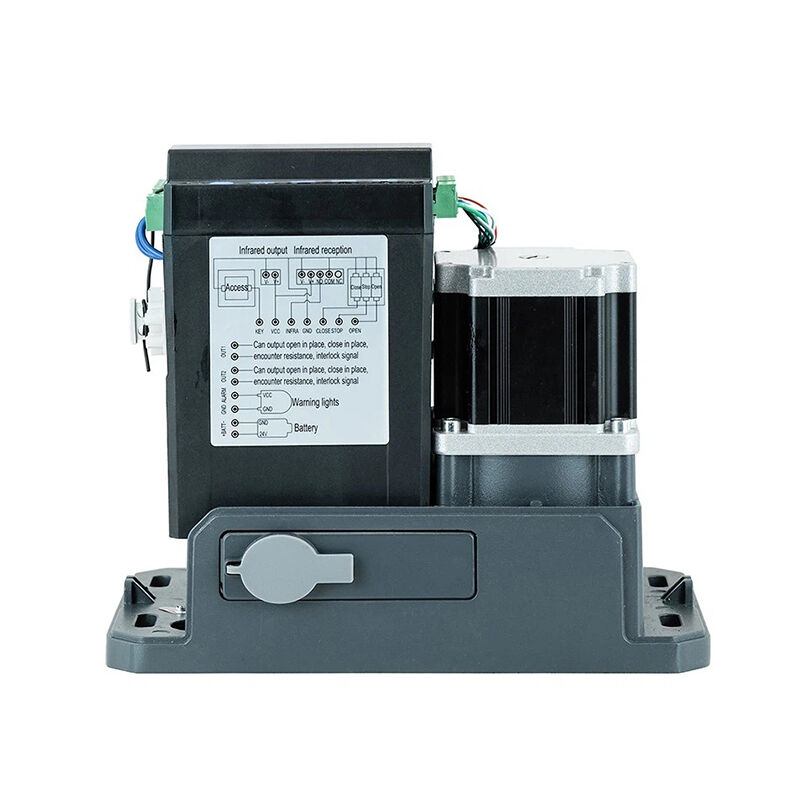

SL500DCW 500KG 22m/min Automatic Sliding Gate Opener with 24V BLDC Motor
  • SL500DCW 500KG 22m/min Automatic Sliding Gate Opener with 24V BLDC Motor
  • SL500DCW 500KG 22m/min Automatic Sliding Gate Opener with 24V BLDC Motor
SL500DCW 500KG 22m/min Automatic Sliding Gate Opener with 24V BLDC Motor

SL500DCW 500KG 22m/min Automatic Sliding Gate Opener with 24V BLDC Motor

Luogo di origine Shenzhen, Cina.
Marca SINOMATIC
Certificazione CE/ ISO
Numero di modello SL500DCW
Dettagli del prodotto
Tipo di motore:
DC24V senza spazzola
Potenza del motore:
140 W
Velocità di movimento della porta:
21-22 m/min
Peso di caricamento massimo:
500kg
Peso del pacco:
10KG
Modalità di controllo remoto:
Modalità a pulsante singolo / Modalità a tre pulsanti
Interruttore limite:
Finecorsa magnetico/finecorsa a molla
Dovere di lavoro:
S1
Temperatura di lavoro:
-20°C - +70°C
Termini di pagamento e di spedizione
Quantità di ordine minimo
Ordine di esempio accettato
Prezzo
negotiable
Imballaggi particolari
Cartone/Box/pallet in compensato
Tempi di consegna
5-10 giorni lavorativi dopo il pagamento ricevuto
Termini di pagamento
T/T, Western Union, carta di credito/contanti/Alipay, L/C, D/A, D/P
Capacità di alimentazione
10.000 pezzi al mese
Descrizione del prodotto
SL500DCW 500KG 22 Meter Per Minute Moving Speed Automatic Sliding Gate Opener With BLDC Motor
The SL500DCW Sliding Gate Opener Kit is a continuous duty 24V BLDC slide gate opener designed to move gates up to 500kg and 12 meters wide. Featuring electromechanical integration, UV stabilized enclosure, and compact design, this operator includes an internal 24V/2.5Ah battery for operation during power outages.
Product Spotlights
Maximum Load: Supports a maximum load of 500KGS, ensuring it can handle heavy sliding gates.
Motor Power: Equipped with a DC24V/150W motor, providing efficient and reliable operation for sliding gates.
Gate Move Speed: Operates at a speed of 21-22m/min, ensuring quick and smooth gate movement.
Built-in Battery Specification: Includes a 24V/2Ah lithium battery, offering a reliable power backup for consistent performance.
Key Features
  • Continuous duty 24V BLDC slide gate opener for gates up to 500kg and 12 meters wide
  • Electromechanical integration with UV stabilized enclosure
  • Internal 24V/2.5Ah battery for operation during power outages
  • Adjustable opening and closing speed
  • Wi-Fi support with app control for remote operation
  • Comprehensive safety features including safety sensors and flashing lights
  • Safety reversing after detecting obstructions
  • Soft start-slow close function and automatic close function
  • Mechanical clutch device for manual operation during power outages
SL500DCW 500KG 22m/min Automatic Sliding Gate Opener with 24V BLDC Motor 0
Technical Specifications
Unit Model SL500DCW
Power supply AC220V/50Hz; AC110V/60Hz
Maximum gate weight 500KG
Motor Power DC24V/150W
Work duty S1
Limit switch Spring/Magnetic/Electronic Limit Switch
Gate moving speed 21-22m/min
Recording of Up Remote Controls 100
Frequency 433.92MHz
Noise ≤58db
Working Temperature -20℃~+50℃
Built-in Battery Specification 24V/2.5Ah Lithium Battery
Package Weight 10KG
SINOMATIC Advantages
  • Expert, practical advice on gate automation solutions from years of experience
  • Full customization for logo, color, PCB program, cover options, and packaging
  • Strict quality control, flexible MOQ, efficient production with 15-day shipping for MOQ300
  • 70+ technology and product patents
  • ISO, ROHS and CE compliant
  • Outstanding service covering design, development, production, compliance, logistics, and marketing support
