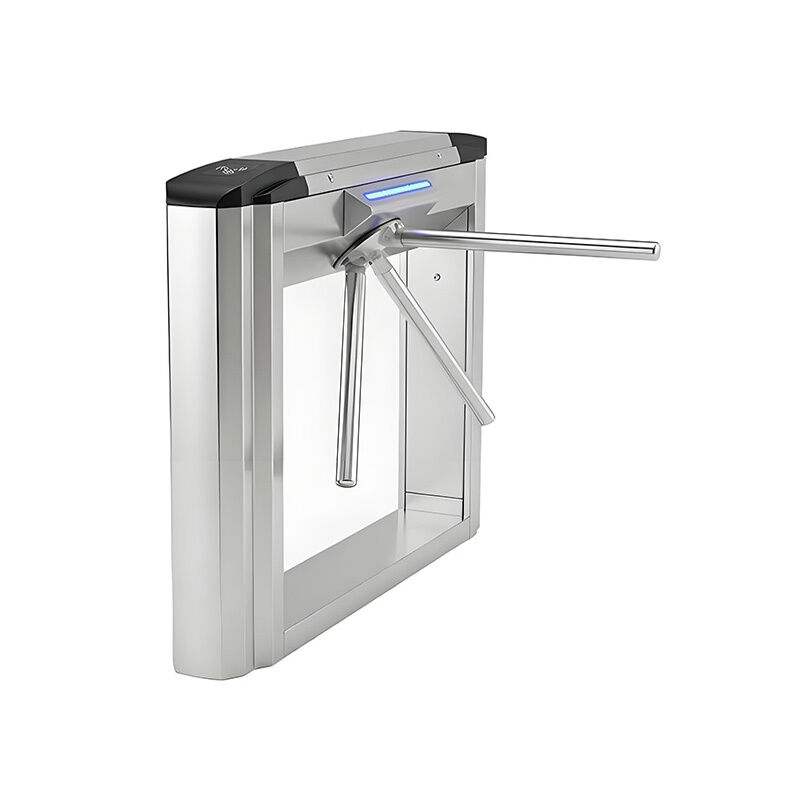

Low Noise Hydraulic Buffer 304 Stainless Steel Bi-Directional Access Control Tripod Turnstile
  • Low Noise Hydraulic Buffer 304 Stainless Steel Bi-Directional Access Control Tripod Turnstile
  • Low Noise Hydraulic Buffer 304 Stainless Steel Bi-Directional Access Control Tripod Turnstile
  • Low Noise Hydraulic Buffer 304 Stainless Steel Bi-Directional Access Control Tripod Turnstile
Low Noise Hydraulic Buffer 304 Stainless Steel Bi-Directional Access Control Tripod Turnstile

Low Noise Hydraulic Buffer 304 Stainless Steel Bi-Directional Access Control Tripod Turnstile

Luogo di origine Shenzhen, Cina.
Marca SINOMATIC
Certificazione CE/ ISO
Numero di modello SN-TT22
Dettagli del prodotto
Pattern di apertura:
Semiautomatico
Porta:
Shenzen/Guangzhou
Azionare il solenoide:
CC 24 V
Grado di protezione:
IP54
Tensione operativa:
CC 24 V
Materiale della struttura:
Acciaio inossidabile 304#
Direzione di passaggio:
Singolo direzionale / bidirezionale
Dimensioni del telaio:
1200*220*1000MM
Potenza in ingresso:
AC100V~240V, DC24V
Evidenziare:

304 stainless steel tripod turnstile

,

low noise hydraulic buffer turnstile

,

bi-directional access control turnstile

Termini di pagamento e di spedizione
Quantità di ordine minimo
Ordine di esempio accettato
Prezzo
$250~$350
Imballaggi particolari
Cartone/Box/pallet in compensato
Tempi di consegna
5-10 giorni lavorativi dopo il pagamento ricevuto
Termini di pagamento
T/T, Western Union, L/C, D/A, D/P
Capacità di alimentazione
3.000 pezzi al mese
Descrizione del prodotto
Low Noise Hydraulic Buffer Integrated Motor Free Tripod Turnstiles for Library and Study Hall
The SINOMATIC drop arm tripod turnstile combines attractive design with robust performance, capable of handling high-volume and demanding conditions. Its compact construction allows for easy multiple lane configurations. Ideal for various applications including bus stations, ports, subways, factories, residential areas, hotels, and corporate facilities where smart flow control is required.
Key Product Advantages
  • Premium 304 Stainless Steel Turnstiles Construction Built to Last in Busy High-Traffic Environments
  • Ultra Smooth and Whisper Quiet Operation Thanks to Advanced Hydraulic Damping
  • Automatic Drop Arm for Instant Emergency Evacuation and Fire Safety Compliance
  • Bi-Directional Access Control Perfect for Flexible Entry and Exit Management
  • Compact Narrow Design Saves Valuable Floor Space in Offices Gyms and Schools
  • Easy Integration with Card Readers RFID Biometrics and Access Control Systems
  • Reliable Fail-Safe Mechanism Drops Arms Automatically During Power Failure
  • Low Power Consumption and Stable Performance for Daily Heavy Use
  • Stylish Modern Look with Clean Stainless Steel Finish and Customizable Panels
  • Super Easy Installation with Pre-Drilled Base and Simple Bolt Mounting
  • Durable Against Shocks and External Force Thanks to Dual Bearing Structure
  • Supports Free Passage Mode One-Way or Full Electronic Card Access Control
  • Wide Temperature Range Operation from Freezing Cold to Hot Weather Conditions
  • Gentle Auto-Centering Arms with Minimal Pushing Effort for User-Friendly Flow
  • Secure Pedestrian Control Without Tailgating Ideal for Corporate and Institutional Entrances
  • Weather Resistant and Corrosion Proof Stainless Steel for Long-Term Reliability
  • Fast and Efficient Pedestrian Throughput in Crowded High-Traffic Areas
  • Ready for Multiple Readers Including Barcode Fingerprint and Exit Buttons
  • Robust 60kg Heavy-Duty Build Delivers Unmatched Stability and Security
Technical Specifications
ITEM SPECS
Drive mode Mechanical Drive Unit
Power Input AC100~240V, 50/60Hz; DC24V
Operation Voltage DC24V, 3A, Power: 40W
Unlock Time 0.2 seconds
Automatic Reset Function Automatically locked within set time (Adjustable)
Passage Direction Single directional / Bi-directional (optional)
Throughput Rate 30~35 persons/minute
Housing Material 304 Stainless Steel
Housing size 1200*220*1000mm
Barrier arm length 510mm
Operating Temperature -20°C ~ +60°C
Protection Level IP54
MCBF 5,000,000 Cycles
Low Noise Hydraulic Buffer 304 Stainless Steel Bi-Directional Access Control Tripod Turnstile 0
Performance Features
  • Auto replacement function with repositioning after passage
  • Anti-tail function with auto-lock at 120° rotation
  • Arms automatically drop during power failure for emergency access
  • Standard electronic interface with internet remote control capability
  • Compatible with various card readers and relay signal integration
  • Diverse control modes adaptable to varying requirements
  • Automatic error alert function for easy maintenance
  • Manual button or remote control options
  • Bi-directional passage capability
  • Open signal with memory function
  • Red and green LED indicators for pass/stop status
SINOMATIC Manufacturing Advantages
  • Over 20 years of OEM/ODM experience in access control systems
  • Prompt delivery with standard model inventory
  • OEM/ODM orders accepted to meet client specifications
  • Trial orders available for product testing
  • Comprehensive online technical support
  • Multiple transportation options: sea, air, or express
  • Factory visits welcome during working days
