DC24V 300kg Capacity Swing Gate Opener with Remote Control for Residential Courtyards
  • DC24V 300kg Capacity Swing Gate Opener with Remote Control for Residential Courtyards
  • DC24V 300kg Capacity Swing Gate Opener with Remote Control for Residential Courtyards
  • DC24V 300kg Capacity Swing Gate Opener with Remote Control for Residential Courtyards
DC24V 300kg Capacity Swing Gate Opener with Remote Control for Residential Courtyards

DC24V 300kg Capacity Swing Gate Opener with Remote Control for Residential Courtyards

Luogo di origine Shenzhen, Cina.
Marca SINOMATIC
Certificazione CE/ ISO
Numero di modello SW300DC
Dettagli del prodotto
Alimentazione elettrica:
220 V, 50Hz; 110 V, 60Hz
Potenza del motore:
CC 24V, 50W
Ciclo operativo:
20 secondi per 90 gradi (circa)
Telecomando:
Incluso
Intervallo di controllo remoto:
Non meno di 30 milioni
Origine:
Cina
Frequenza:
50/60Hz
Sistema di controllo:
Su microelaboratore
Peso massimo del cancello:
300 kg/foglia
Termini di pagamento e di spedizione
Quantità di ordine minimo
Ordine di esempio accettato
Prezzo
negotiable
Imballaggi particolari
Cartone/Box/pallet in compensato
Tempi di consegna
5-10 giorni lavorativi dopo il pagamento ricevuto
Termini di pagamento
T/T, Western Union, D/P, D/A, L/C
Capacità di alimentazione
2.000 pezzi al mese
Descrizione del prodotto
DC24V AC220V 110V for 300kg Per Leaf Automatic Swing Gate Opener Dual Arms Gate Motor
Product Overview

The SN-SW300DC gate opener is designed for residential courtyard swing gate applications, supporting gate leaf weight up to 300 kg and width up to 2.5m. Features include DC motor operation, compact structure, smooth performance, and low noise operation.

Technical Specifications
Power Supply 110V/220V AC
Max. Gate Weight 300 kg per wing
Motor Power 50W 24V DC
Max. Piston Stroke 32cm
Operating Cycle 18~22 seconds per 90° (approx)
Max. Gate Length 2.5M
Working Duty S2, 30min
Main Features
  • Soft start slow stop, automatic close, obstacle detection by automatic reversing
  • Interface for GSM, infrared sensor, alarm light, wall button
  • Back up battery compatibility
  • Solar panel operation capability
  • Aluminum shell with stainless steel arm construction
  • Separate control unit for easy installation

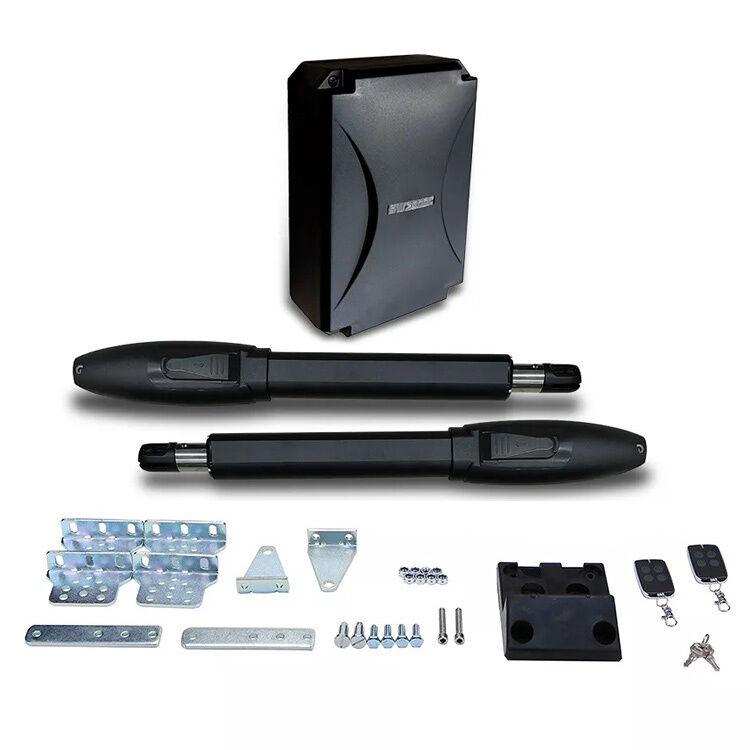

Standard Unit Components
  • SW300DC motor * 2 pcs
  • Control box * 1 pc
  • Control board * 1 pc
  • Remote control * 2 pcs
  • Manual release key * 1 pc
  • User manual * 1 pc
  • Mounting accessories
DC24V 300kg Capacity Swing Gate Opener with Remote Control for Residential Courtyards 0
Installation Guide
Preparation Before Main Engine Installation
  • Before installing the door opener, confirm proper door installation to ensure easy manual operation and effective door safety stopper functionality.
  • Install electric lock with 40-50mm distance between door bottom and ground. Without electric lock, maintain ≥20mm clearance.
  • Recommended mounting height: 300-800mm from ground with reliable fixed points for mounting brackets.
Cable Installation

Use PVC pipe for laying motor, power cable, and control cables. Separate PVC pipes for motor/power cables and control cables respectively to ensure normal operation and cable protection.

Mounting Brackets

For secure motor installation, use expansion screws to firmly fix mounting brackets.

Complete Documentation

For comprehensive installation and operation details, download the complete user manual:

DC24V 300kg Capacity Swing Gate Opener with Remote Control for Residential Courtyards 1
